RACING LAB COOLING

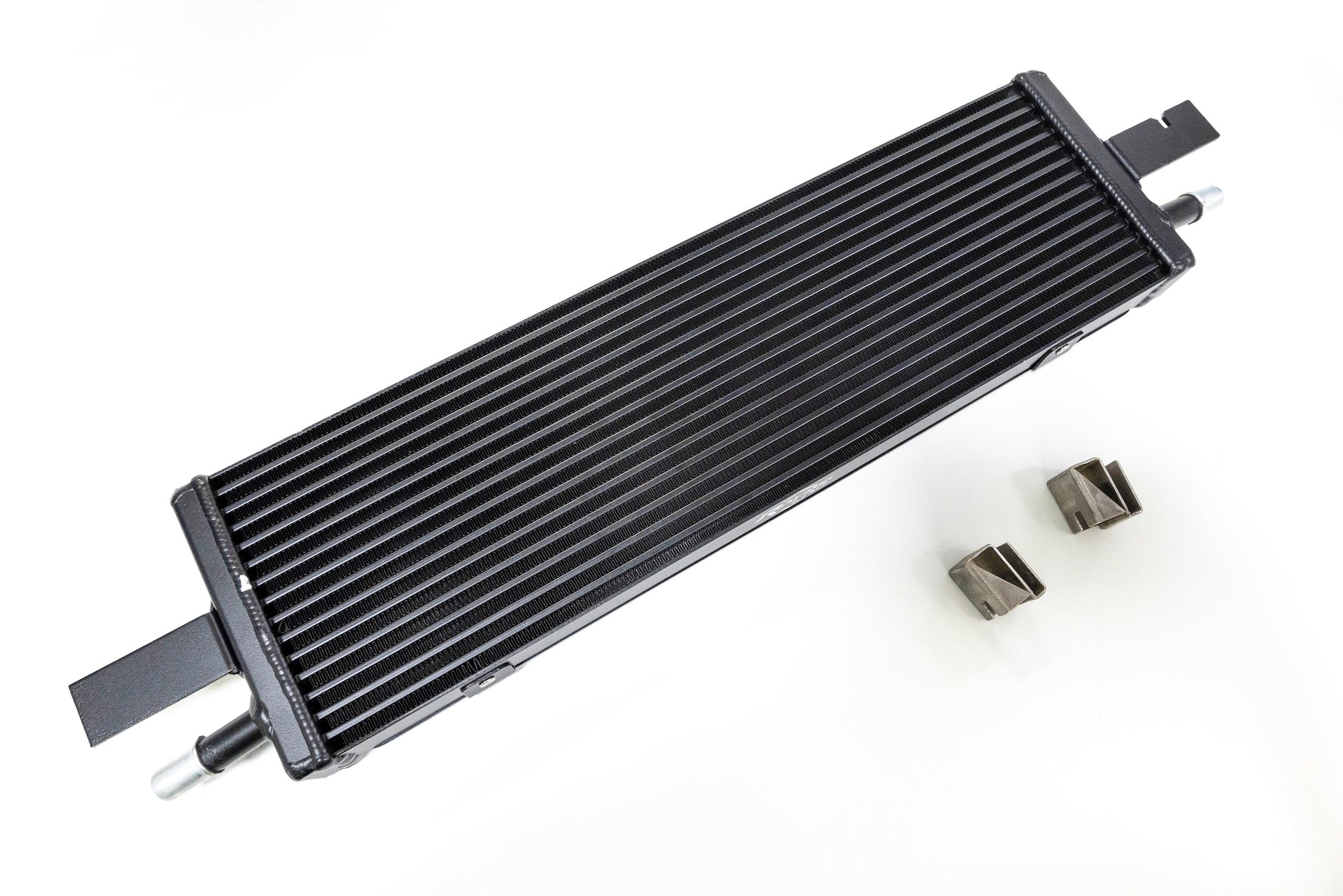

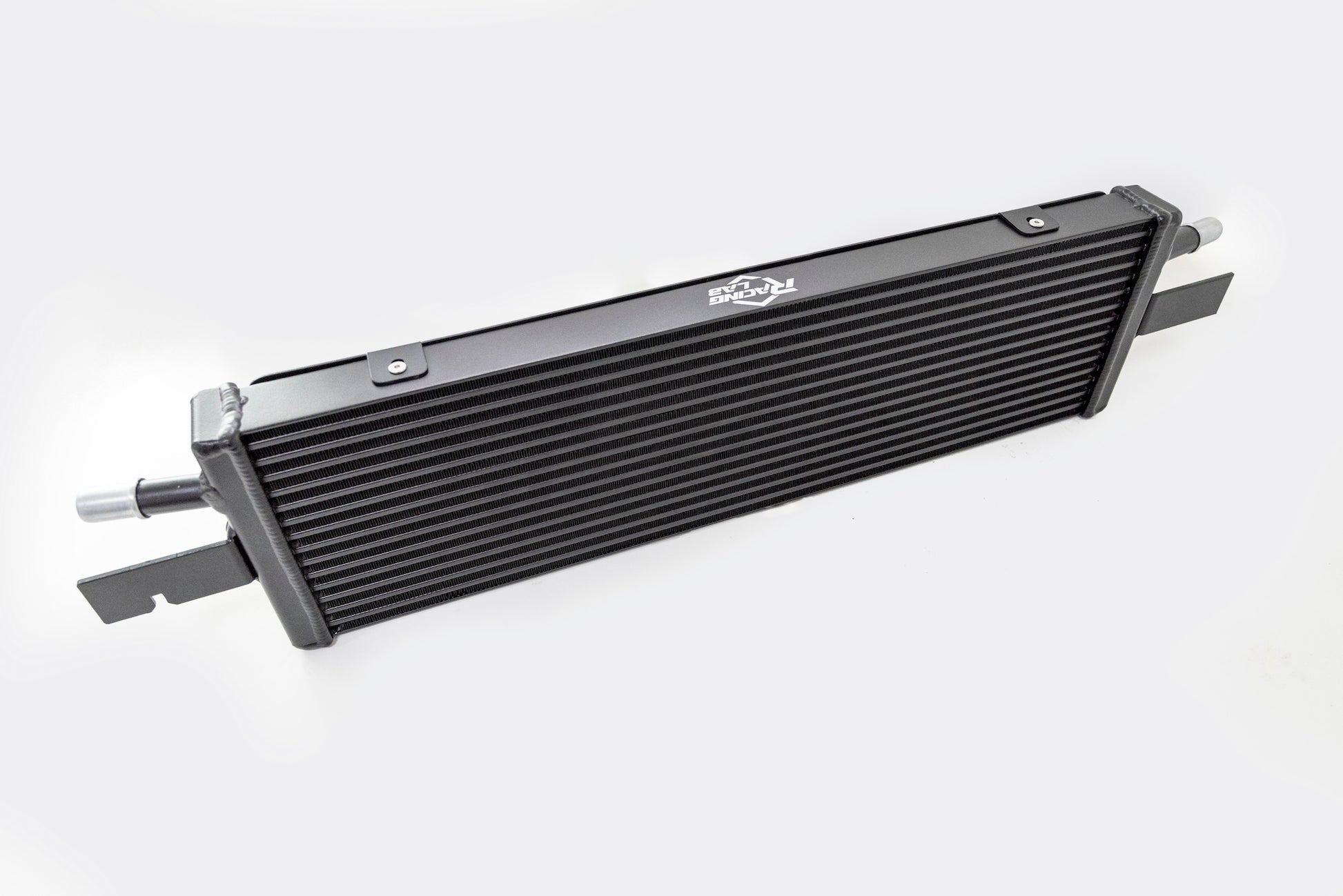

32 mm transmission oil cooler for the B58 Supra
An enlarged 32 mm aluminium transmission cooler for supported automatic A90/A91 Supras and compatible BMW G-Series B58 models. The direct-replacement layout retains factory-position mounts and cooling connections, with a protective stone/insect mesh included.
32 mm
Core thickness
+100%
Vs ~16 mm OEM
Bolt-on
Factory position
Key features
✓Larger cooling core
32 mm aluminium core compared with the approximately 16 mm original unit.

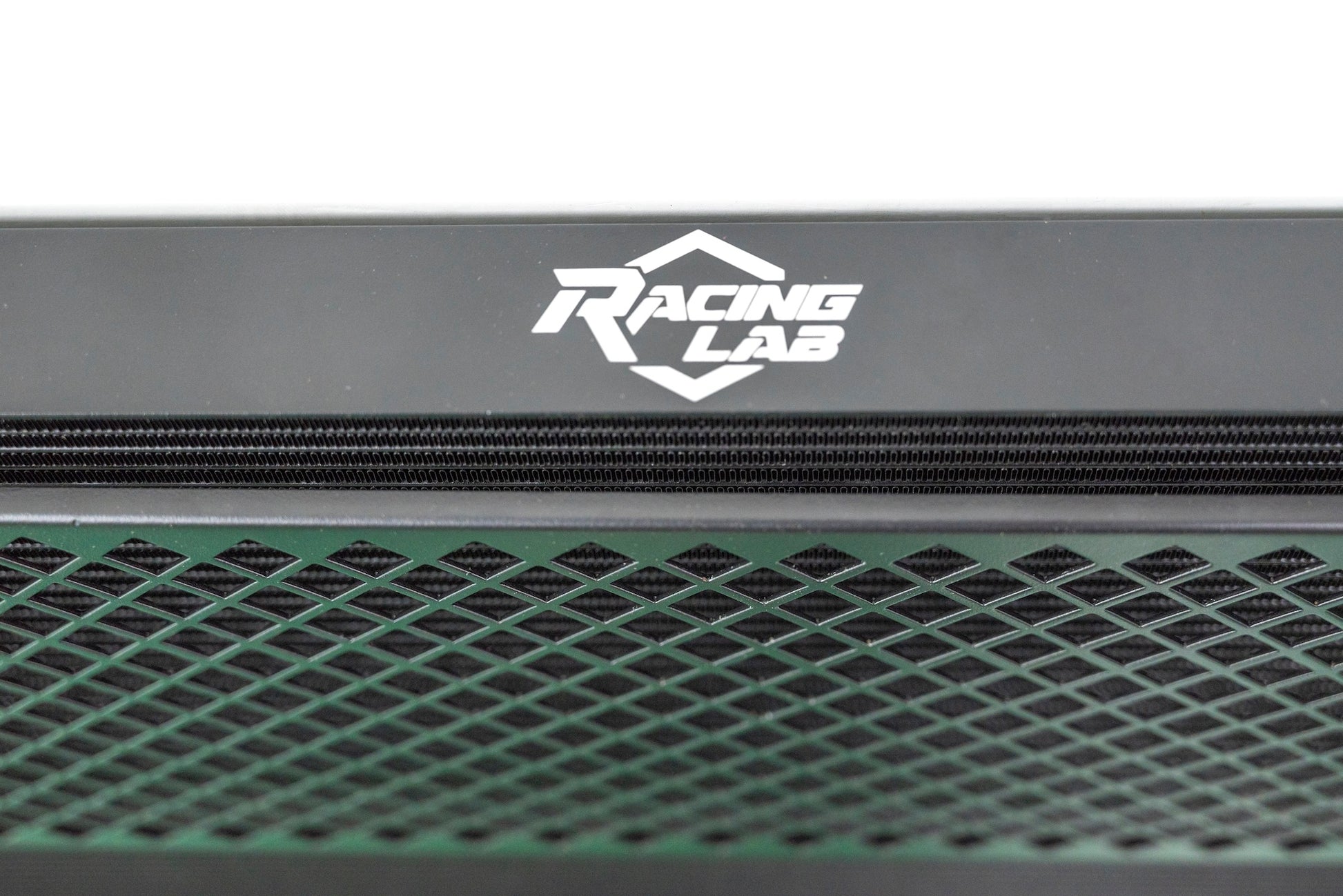

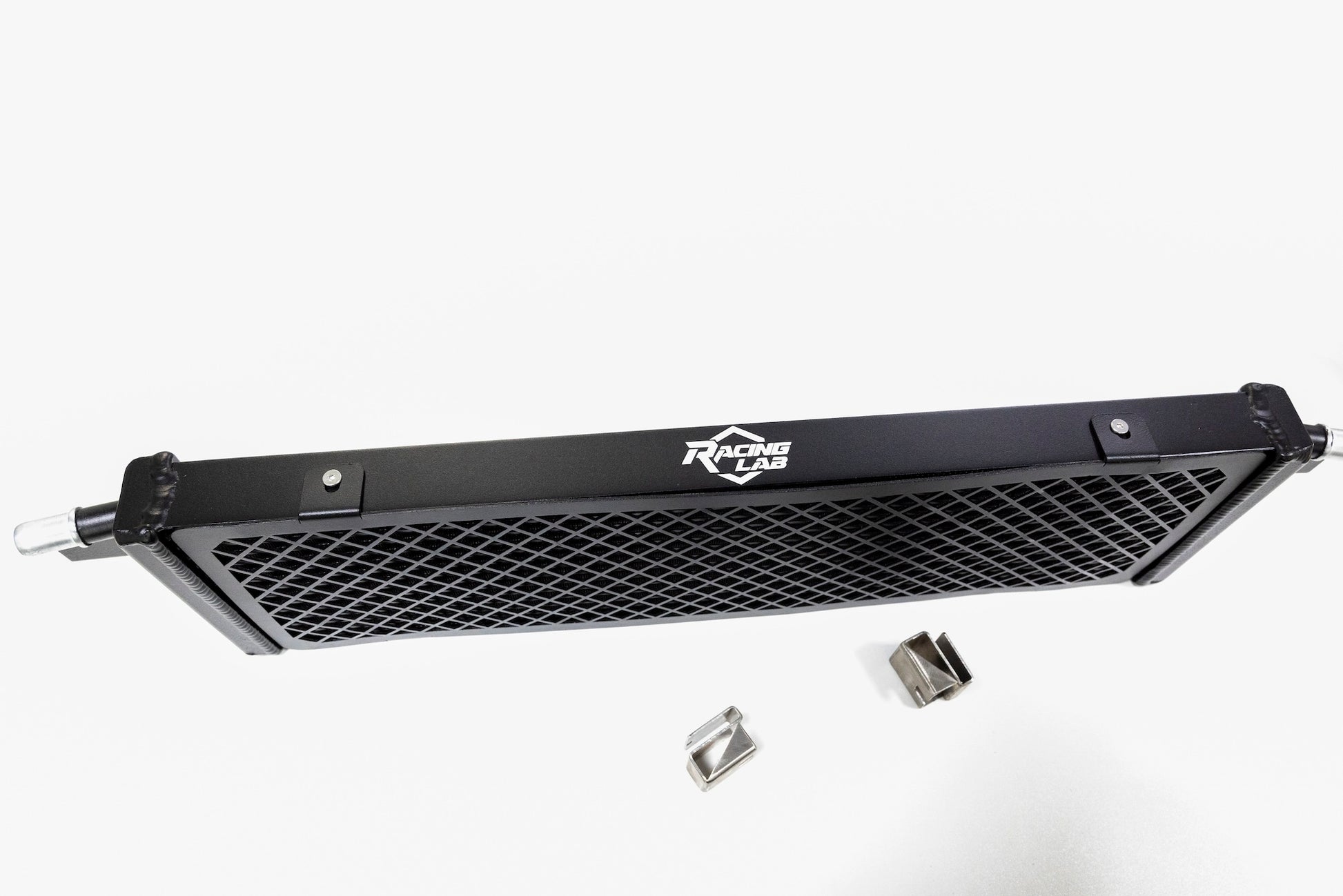

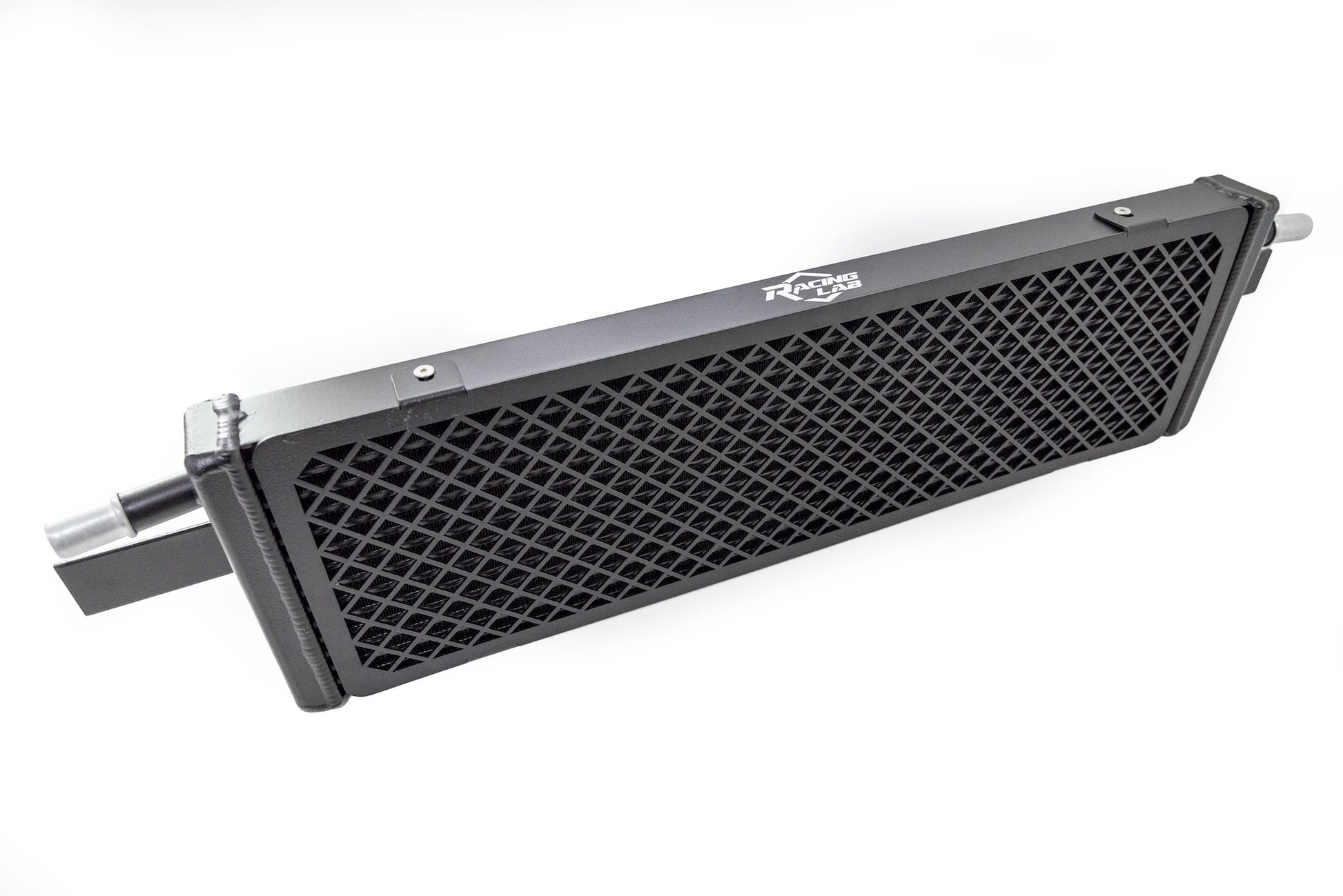

✓Protective mesh
Dedicated guard helps shield the core against insects and road or track debris.
✓Factory-position replacement
Designed for direct-fit mounting and original transmission-cooling connections.
✓High-load applications
Supports thermal management for tuned, track-driven and higher-torque setups.
Design & construction
The upgraded core doubles the nominal thickness of the approximately 16 mm factory reference. The larger heat-exchange surface and protective mesh are designed for repeated high-load driving while maintaining the original cooler location.
Fitment & installation
Install in the corresponding original location, connect the correct transmission-cooling circuit and position the supplied mesh. Refill/bleed to vehicle specification and check operating temperature and every line connection.
What's included
- 1 × 32 mm transmission oil cooler
- 1 × protective stone/insect mesh
Vehicle fitment
ToyotaGR Supra A90 / A91 B58, 2020+
BMWG42 M240i / xDrive B58, 2022+
BMWG20 / G21 M340i B58 — supported pre-B58N cooling configurations
BMWG22 / G23 / G26 M440i B58 — supported pre-B58N cooling configurations
BMWG29 Z4 M40i B58, supported 2018+
Technical specifications
Core32 mm aluminium
OEM comparisonApproximately 16 mm factory core; +100% thickness
GuardProtective stone / insect mesh included
OE referencesBMW 17219494828 · Toyota 32910-WAA02
InstallationFactory mounting and cooling-system connections
Compatibility
Important BMW fitment: later B58N M340i/M440i cooling systems using OE 17218852263 require a different cooler. This product is for the matching earlier OE configuration.
